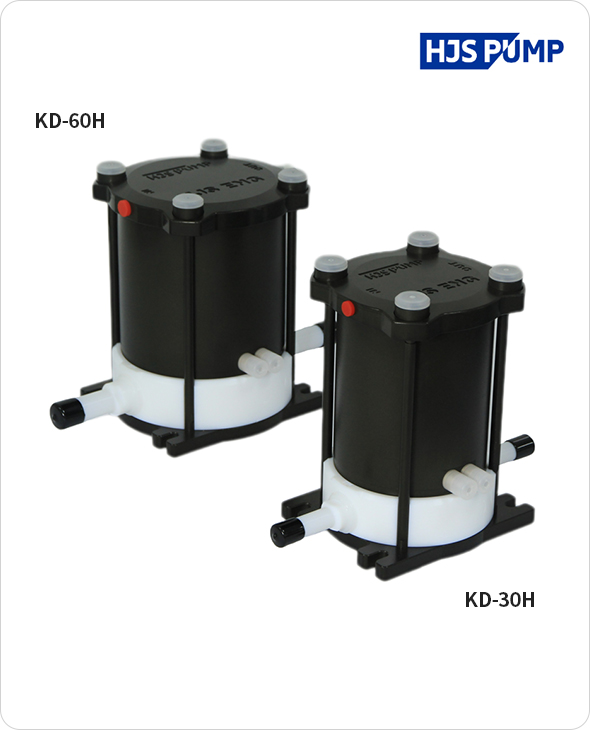

High · Medium · Room-Temperature combined Auto Damper

特点

应用范围 ( Operating temperature ) - 10℃∼180℃

应用泵 ( Applied pump ) - KP-30H/30MC & KP-60H/60MC

库存管理简便 ( Easy stock management )

规格 Standard Specifications

Items / Models	KD - 30H			KD - 60H
应用泵 Applied pump	KP-30H / KP-30MC			KP-60H / KP-60MC
液体温度使用范围 (℃) Temp. range of liquid 空气供给压力范围 (MPa) Air supply pressure	应用泵 (Applied pump) : KP-30H			应用泵 (Applied pump) : KP-60H
	10 ~ 50 ℃	51 ~ 100 ℃	101 ~ 180 ℃	10 ~ 50 ℃	51 ~ 100 ℃	101 ~ 180 ℃
	0.15 ~ 0.4 MPa	0.15 ~ 0.3 MPa	0.15 ~ 0.2 MPa	0.15 ~ 0.4 MPa	0.15 ~ 0.3 MPa	0.15 ~ 0.2 MPa
	※ 向阻尼器(Damper)提供空气与泵(Pump)驱动的空气压力相同 Supply air to Damper at the same pressure as Pump-driven air
液体温度使用范围 (℃) Temp. range of liquid 空气供给压力范围 (MPa) Air supply pressure	应用泵 (Applied pump) : KP-30MC			应用泵 (Applied pump) : KP-60MC
	10 ~ 50 ℃	51 ~ 100℃	N/A	10 ~ 50 ℃	51 ~ 100℃	N/A
	0.15 ~ 0.4 MPa	0.15 ~ 0.3 MPa	N/A	0.15 ~ 0.4 MPa	0.15 ~ 0.3 MPa	N/A
	※ 向阻尼器(Damper)提供空气与泵(Pump)驱动的空气压力相同 Supply air to Damper at the same pressure as Pump-driven air
空气供给连接端 Air supply inlet ports	Rc 1/8”			Rc 1/4”
液体连接端 Liquid connection ports	PTFE 3/4” (O.D 19 x I.D16mm)			PTFE 1” (O.D 25 x I.D 22mm)
液体接触材质 Liquid contact materials	PTFE, PFA
使用环境温度范围 Ambient temperature	5 ~ 50℃
脉动压力宽度 (MPa) Pulsation pressure width	≤ 0.06 MPa ( 液体粘度为 1~50mPa•s时 ) Within 0.06 MPa ( in case liquid viscosity is within 1~50 mPa•s )

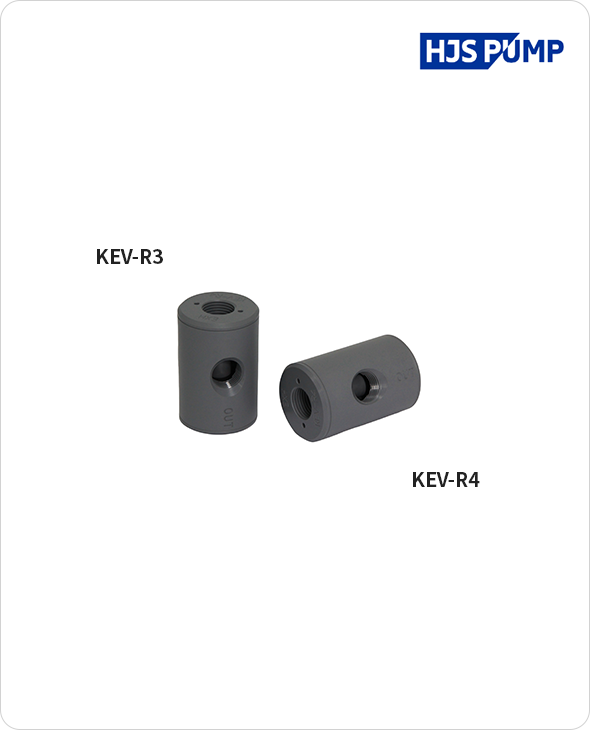

Quick Exhaust Valve

特点

防止电磁阀被泵回气腐蚀，减少排气阻力
Prevent corrosion of solenoid valve by air returning from pump and reduce exhaust resistance

规格 Models	连接端 Connection ports	应用泵 Applied pump
KEV-R3	Rc 3/8” (PT)	KP-30H, KP-30MC, KA-C20H, KA-S25M
KEV-R4	Rc 1/2” (PT)	KP-60H, KP-60MC, KA-C40H, KA-S50M
