HJS K-系列 波纹管泵(风囊泵) & 阻尼器

    K-系列 波纹管泵(风囊泵)
    K-系列 低脉动泵
    K-系列 阻尼器
    低脉动泵 ( 清洗设备循环泵 )
    Medium · Room-Temperature combined Bellows pump
    特点

    应用范围 ( Operating Range )
    - 最大流量 : 20 & 40 L/min
    - 应用温度 : 10℃∼180℃

    低脉动及稳定的流量 ( Low pulsation, Stable)

    过滤阻力降低 ( Low filter resistance )泵和阻尼器一体型，减少安装空间 ( Pump & damper integration, Reduce installation space)

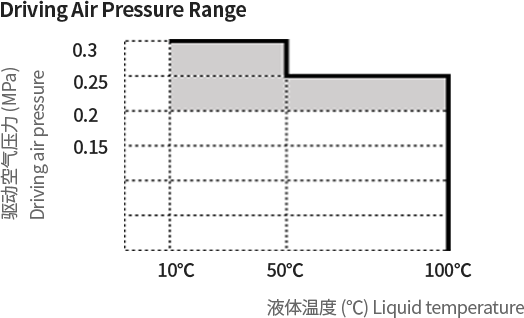

    驱动空气压力范围
    ■ 流量 Pump Performance Curve

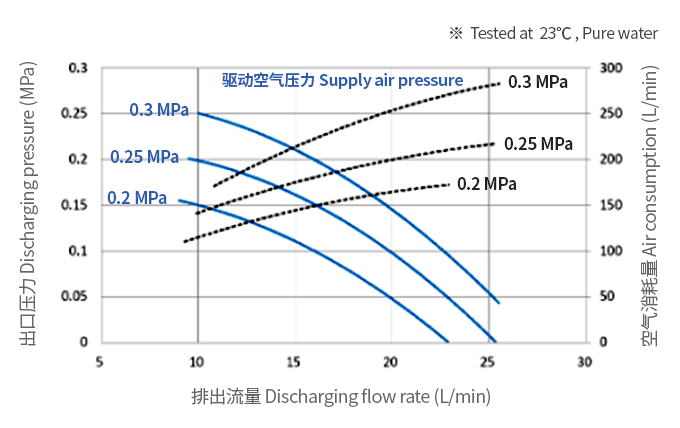

    KA-C20M
    试验条件 Test conditions

    - Supply air pipe size : Rc 3/8” (PT) Port (Tube O.D10 X I.D8 X 2M)

    - Liquid pipe size : In port 3/4” (Tube O.D19 X I.D16)
    Out port 3/4” (Tube O.D19 X I.D16)

    - Test liquid : Pure water, 23℃

    KA-C40M
    试验条件 Test conditions

    - Supply air pipe size : Rc 1/2” (PT) Port (Tube O.D12 X I.D10 X 2M)

    - Liquid pipe size : In port 1” (Tube O.D25 x I.D22)
    Out port 1” (Tube O.D25 x I.D22)

    - Test liquid : Pure water, 23℃

    ■ 规格 Standard Specifications
    Items / Models KA - C20M KA - C40M
    最大排出流量 (L/min)
    Max. discharging flow rate     		20 L/min 40 L/min
    每冲程流量 (L/stroke)
    Flow rate per stroke     		0.22 L/stroke 0.40 L/stroke
    液体温度使用范围 (℃)
    Temp. range of liquid     		10 ~ 50 ℃ 51 ~ 100 ℃ - 10 ~ 50 ℃ 51 ~ 100 ℃ -
    驱动空气压力范围 (MPa)
    Driving air pressure range     		0.2 ~ 0.3
    MPa    		 0.2 ~ 0.25
    MPa    		 - 0.2 ~ 0.3
    MPa    		 0.2 ~ 0.25
    MPa    		 -
    最大允许冲程速度 (spm)
    Max allowable Stroke speed     		Max 105 stroke/min Max 105 stroke/min
    驱动空气连接端
    Air supply inlet ports    		 Pump Drive Air-In ports: 2-Rc 3/8” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)     		Pump Drive Air-In ports : 2-Rc 1/2” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)
    液体连接端
    Liquid connection ports     		PTFE 3/4” (O.D 19 x I.D 16mm) PTFE 1” (O.D 25 x I.D 22mm)
    液体接触材质
    Liquid contact materials     		PTFE, PFA
    使用环境温度范围
    Ambient temperature     		5 ~ 50℃
    接近开关 传感器
    Proximity switch    		 输出信号
    Output type    		 NPN Output ( N.O. mode )
    电源
    Power supply    		 DC 10~30V
    脉动压力宽度 (MPa)
    Pulsation pressure width     		≤ 0.06 MPa ( 液体粘度为 1~50mPa•s时 )
    Within 0.06 MPa ( in case liquid viscosity is within 1~50 mPa•s )
    * Note.1) 最大排出流量是根据常温下纯水的最大冲程(Stroke)速度测定的值。
    * Note.2) 1个冲程 (1 stroke) : 1次往复(1 reciprocating motion)
    低脉动泵 ( 清洗设备循环泵 )
    Medium · Room-Temperature combined Bellows pump
    特点

    应用范围 ( Operating Range )
    - 最大流量 : 20 & 40 L/min
    - 应用温度 : 10℃∼180℃

    低脉动及稳定的流量 ( Low pulsation, Stable)

    过滤阻力降低 ( Low filter resistance )泵和阻尼器一体型，减少安装空间 ( Pump & damper integration, Reduce installation space)

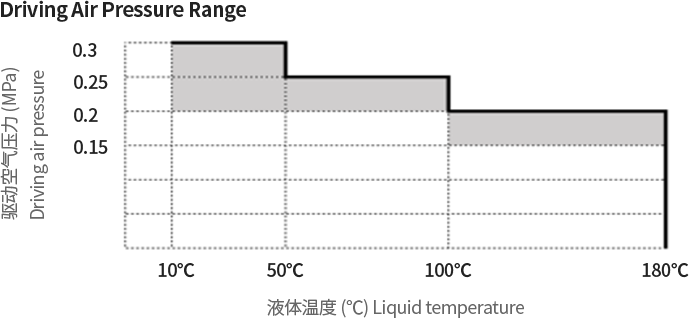

    驱动空气压力范围

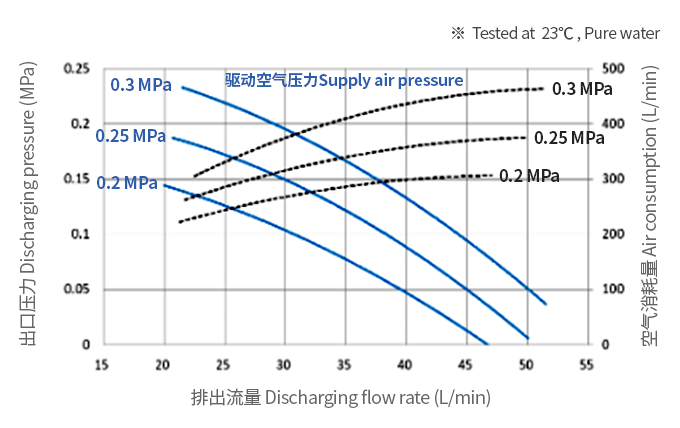

    ■ 流量 Pump Performance Curve
    KA-C20H
    试验条件 Test conditions

    - Supply air pipe size : Rc 3/8” (PT) Port (Tube O.D10 X I.D8 X 2M)

    - Liquid pipe size : In port 3/4” (Tube O.D19 X I.D16)
    Out port 3/4” (Tube O.D19 X I.D16)

    - Test liquid : Pure water, 23℃

    KA-C40H
    试验条件 Test conditions

    - Supply air pipe size : Rc 1/2” (PT) Port (Tube O.D12 X I.D10 X 2M)

    - Liquid pipe size : In port 1” (Tube O.D25 x I.D22)
    Out port 1” (Tube O.D25 x I.D22)

    - Test liquid : Pure water, 23℃

    ■ 规格 Standard Specifications
    Items / Models KA - 30H KA - 60H
    最大排出流量 (L/min)
    Max. discharging flow rate     		20 L/min 40 L/min
    每冲程流量 (L/stroke)
    Flow rate per stroke     		0.22 L/stroke 0.40 L/stroke
    液体温度使用范围 (℃)
    Temp. range of liquid     		10 ~ 50 ℃ 51 ~ 100 ℃ 101 ~ 180 ℃ 10 ~ 50 ℃ 51 ~ 100 ℃ 101 ~ 180 ℃
    驱动空气压力范围 (MPa)
    Driving air pressure range     		0.2 ~ 0.3
    MPa    		 0.2 ~ 0.25
    MPa    		 0.15 ~ 0.2
    MPa    		 0.2 ~ 0.3
    MPa    		 0.2 ~ 0.25
    MPa    		 0.15 ~ 0.2
    MPa
    最大允许冲程速度 (spm)
    Max allowable Stroke speed     		Max 105 stroke/min Max 105 stroke/min
    驱动空气连接端
    Air supply inlet ports    		 Pump Drive Air-In ports: 2-Rc 3/8” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)     		Pump Drive Air-In ports : 2-Rc 1/2” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)
    液体连接端
    Liquid connection ports     		PTFE 3/4” (O.D 19 x I.D 16mm) PTFE 1” (O.D 25 x I.D 22mm)
    液体接触材质
    Liquid contact materials     		PTFE, PFA
    使用环境温度范围
    Ambient temperature     		5 ~ 50℃
    接近开关 传感器
    Proximity switch    		 输出信号
    Output type    		 NPN Output ( N.O. mode )
    电源
    Power supply    		 10 ~ 30
    脉动压力宽度 (MPa)
    Pulsation pressure width     		≤ 0.06 MPa ( 液体粘度为 12~24mPa•s时 )
    Within 0.06 MPa ( in case liquid viscosity is within 1~50 mPa•s )
    * Note.1) 最大排出流量是根据常温下纯水的最大冲程(Stroke)速度测定的值。
    * Note.2) 1个冲程 (1 stroke) : 1次往复(1 reciprocating motion)
    低脉动泵 ( 多种液体输送泵, Slurry 等 )
    Low pulsation pump ( For various chemical supply system, Slurry etc. )
    特点

    应用范围 ( Operating Range )
    - 最大流量 : 25 & 50 L/min
    - 应用温度 : 10℃∼100℃

    低脉动及稳定的流量( Low pulsation, Stable flow)

    过滤阻力降低 ( Low filter resistance ) 泵和阻尼器一体型

    减少安装空间
    ( Pump & damper integration, Reduce installation space)

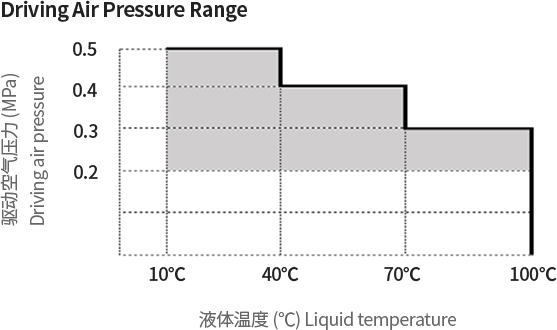

    驱动空气压力范围

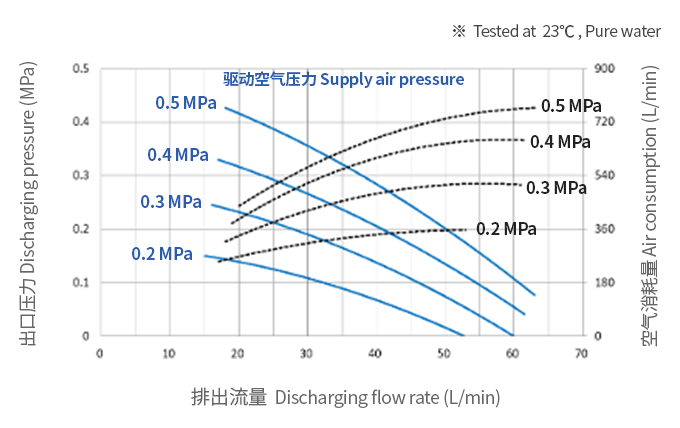

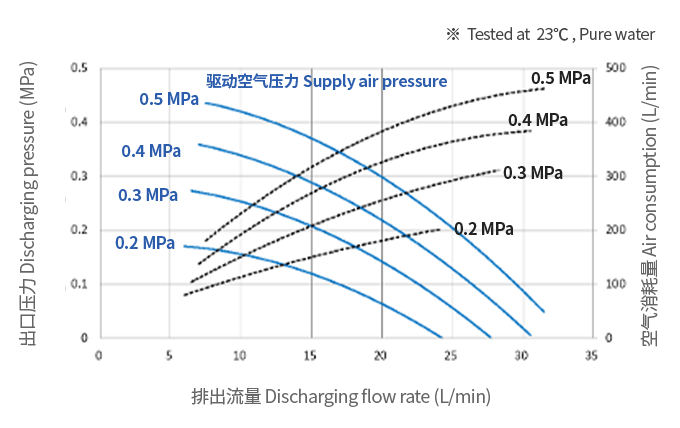

    ■ 流量 Pump Performance Curve
    KA-S25M
    试验条件 Test conditions

    - Supply air pipe size : Rc 3/8” (PT) Port (Tube O.D10 X I.D8 X 2M)

    - Liquid pipe size : In port 1” (Tube O.D25 X I.D22)
    Out port 3/4” (Tube O.D19 X I.D16)

    - Test liquid : Pure water, 23℃

    KA-S50M
    试验条件 Test conditions

    - Supply air pipe size : Rc 1/2” (PT) Port (Tube O.D12 X I.D10 X 2M)

    - Liquid pipe size : In port 1+1/2” (Tube O.D38 x I.D34)
    Out port 1” (Tube O.D25 x I.D22)

    - Test liquid : Pure water, 23℃

    ■ 规格 Standard Specifications
    Items / Models KA – S25M KA – S50M
    最大排出流量 (L/min)
    Max. discharging flow rate     		25 L/min 50 L/min
    每冲程流量 (L/stroke)
    Flow rate per stroke     		0.22 L/stroke 0.46 L/stroke
    液体温度使用范围 (℃)
    Temp. range of liquid     		10 ~ 40 ℃ 41 ~ 70 ℃ 71 ~ 100 ℃ 10 ~ 40 ℃ 41 ~ 70 ℃ 71 ~ 100 ℃
    驱动空气压力范围 (MPa)
    Driving air pressure range     		0.2 ~ 0.5
    MPa    		 0.2 ~ 0.4
    MPa    		 0.2 ~ 0.3
    MPa    		 0.2 ~ 0.5
    MPa    		 0.2 ~ 0.4
    MPa    		 0.2 ~ 0.3
    MPa
    最大允许冲程速度 (spm)
    Max allowable Stroke speed     		Max 115 stroke/min Max 115 stroke/min
    驱动空气连接端
    Air supply inlet ports    		 Pump Drive Air-In ports : 2-Rc 3/8” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)     		Pump Drive Air-In ports : 2-Rc 1/2” (PT)
    Damping Valve Air-In port : Rc 1/4” (PT)
    液体连接端
    Liquid connection ports     		- In port : PTFE 1” (O.D 25 x I.D 22mm)
    - Out port : PTFE 3/4” (O.D 19 x I.D 16mm)    		 - In port : PTFE 1+1/2” (O.D 38 x I.D 34mm)
    - Out port : PTFE 1” (O.D 25 x I.D 22mm)
    液体接触材质
    Liquid contact materials     		PTFE, PFA
    使用环境温度范围
    Ambient temperature     		5 ~ 50℃
    接近开关 传感器
    Proximity switch    		 输出信号
    Output type    		 NPN Output ( N.O. mode )
    电源
    Power supply    		 10 ~ 30
    脉动压力宽度 (MPa)
    Pulsation pressure width     		≤ 0.06 MPa ( 液体粘度为 12~24mPa•s时 )
    Within 0.06 MPa ( in case liquid viscosity is within 1~50 mPa•s )
    * Note.1) 最大排出流量是根据常温下纯水的最大冲程(Stroke)速度测定的值。
    * Note.2) 1个冲程 (1 stroke) : 1次往复(1 reciprocating motion)
    Catalog Download(KR) Catalog Download(CN) Catalog Download(JP) 询价
